(10 Microns & Above, For High Precision & Consistently Reliable Filtration / Separation )
WELDED WEDGE WIRE products / components are the most reliable, long lasting & maintenance free media widely used for separation / retention / filtration application in chemical process industries. These welded wedge wire products can replace conventional media like wire mesh cloth/ punched plates / perforated plates/ non-metallic filter cloth etc.
Construction : Welded wedge wire construction involves two parts.

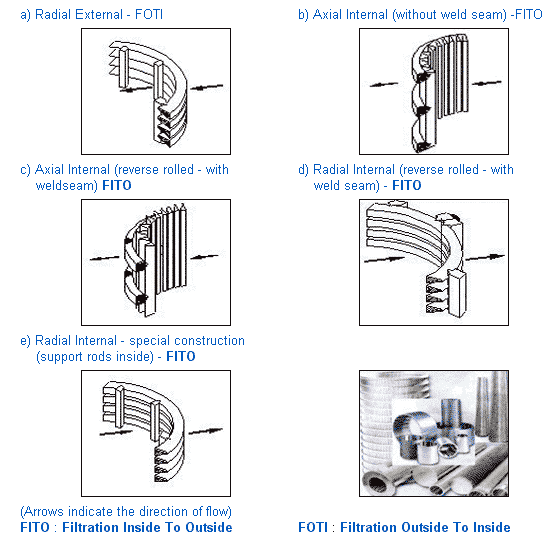

The profile wire and the support rod are fused into one metal at every intersection of the profile wire and the support rod. See the diagram below.
 |
The diagram illustrates why welded wedge wire components are rigid and strong and thereby maintains extremely reliable slot opening all the time.
Basic features of Welded wedge wire components / products :
• They are non-clogging
• Self-supported and rigid
• Very long life
• Reliable and consistent filtration rating
• All metallic construction (non-metallic also possible like PP)
• Easy to clean smooth filtering surface
|
What are the popular welded wedge wire components / products?
Welded wedge wire products are available in various shapes & sizes made suitable for variety of applications. However some standard products are,
a) Candles / Tubes / Pipes
b) Conical Tubes & Conical baskets
c) Tubes / pipes with varying slot opening
e) Curved bends / DSM Screens / Sieve bends - tilted wire type
f) Nozzles / Resin traps / Spargers
g) High flow Welded Wedge Wire strainers (patented by UNISLOT N.V. Belgium)
h) Under drain laterals / Headers etc.
All the finished welded wedge wire products manufactured by Clearsep Technologies are made using basic wedge wire screens of UNISLOT N.V. Belgium.
Also, Clearsep Technologies (I) Pvt. Ltd., are the exclusive marketing agents of UNISLOT N.V. Belgium for the Wedge wire screens manufactured by them for the region covering Asian subcontinent & Middle East countries. For all your requirements and additional information on welded wedge wire screens please mail us today at
response@selfcleaningfilters.in
To know the feature to feature comparison between welded wedge wire construction & wiremesh construction mail us now at
 |
